Page 2 of a tour of the United States Coast Guard Cutter
Biscayne Bay (WTGB 104)
Previous Page                                                                                                                         .

Buscayne Bay diesel engine
One of the Buscayne Bay's two 1,426 horsepower Fairbanks Morse 10 cylinder diesel engines

Like all of the Bay Class icebreakers, the Biscayne Bay has diesel electric propulsion. Diesel engines power electrical generators which provide power for the electric motor that drives the main propulsion shaft and the 8'6" diameter propeller. Power for the Biscayne Bay is provided by two 1,426 hp (1,063 kW) Fairbanks-Morse diesel engines through two 125 kW generators. That power is used to propel the ship with a 2,500 hp (1,900 kW) Westinghouse electric motor which provides high torque at low rpm.

When combined with the bubbler system, this high torque motor can move the Mackinac through fresh water ice up to 20 inches thick, and break ice up to 3 feet thick by ramming.

Coast Guard Cutter Biscayne Bay generators
The two 125 kW generators

Biscayne Bay Vacuum Sewage System
Vacuum Sewage System

Biscayne Bay Captain's cabin
Captain's Quarters (I apologize for the quality of this photo.)

Biscayne Bay pilothouse, navigation and controls
Biscayne Bay pilothouse

Biscayne Bay Telescopic Alidade and auxiliary bridge controls
Starboard observation station with telescopic Alidade at left

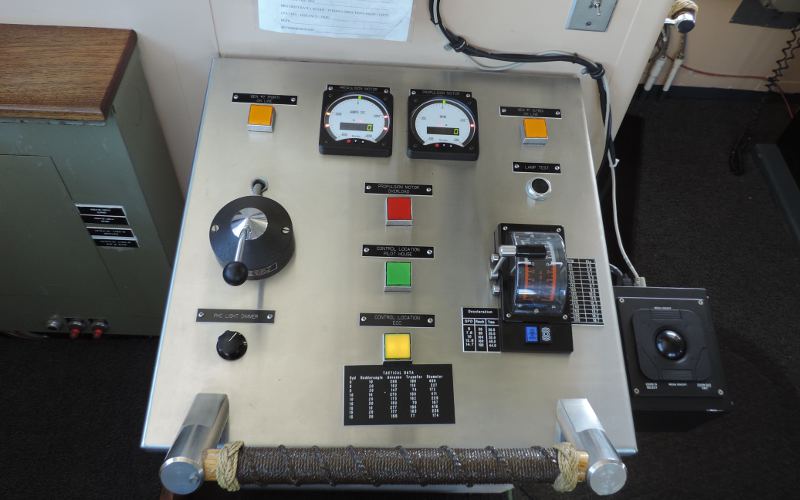

auxiliary controls on the Cutter Biscayne Bay
Auxiliary controls for docking

Biscayne Bay radios and electronics
Communications

As I was taking exterior shots of the Biscayne Bay before leaving, I noticed a sign on the fence at the end of the dock saying that since 2001, the end of the dock has been reserved for the largest nesting colony of common terns in the upper Great Lakes. This is a collaboration between the Coast Guard and the Seney National Wildlife Refuge staff. Populations of the common tern have declined due to loss of breeding habitat and competition with gulls for nesting sites.

St. Ignace Common Tern Reserve
Common Tern Reserve at US Coast Guard Station St. Ignace

Common Terns
Common Terns (terna hirundo)

Blue Angels roar by the Biscayne Bay
The U.S. Navy's Blue Angels roar by the Biscayne Bay during the National Cherry Festival airshow on July 5, 2008.

Biscayne Bay Home  Page 1 of this tour
